Wireless access
This page describe wireless Ethernet access in CSIM facility.
CSIM is using D-Link DIR-880L and Lynksys E3000 dual band access points with DD-WRT firmware. It's providing up to 600 Mbps connection through 802.11n.
CSIM has a complete coverage of the building with wireless Ethernet based on five access points. Every room is now accessible through WiFi.
Virtual Wireless
Installing DD-WRT firmware allows us to deploy virtual wireless where each access point can advertize multiple independent networks. Each access point is configured to advertize three wireless networks: AIT-CSIM, AIT-NON-CSIM and eduroam.
- AIT-CSIM
- shares the same network as the cable network in CSIM, it offers the same features as CSIM cabled network, with access to CSIM servers and authentication through a CSIM account. Android users can use the application that gives automatic authentication. You can also create a x509 identity for a one click connection.
- AIT-NON-CSIM
- Use the password
abcdefghto connect to the WiFi. - shares the same network as the rest of AIT, authentication is made using AIT account. An AIT colleague visiting CSIM facilities can use the network AIT-NON-CSIM to access Internet, with no need for a specific account in CSIM.
The rules and limitations for accessing Internet are the ones that apply for AIT in general. - eduroam
- (education roaming) is a secure, world-wide roaming access service developed for the international research and education community. It allows you to obtain Internet connectivity across CSIM and when visiting other participating institutions by simply opening your laptop. You can follow the instructions on this page to set-up eduroam on your device.
When visiting another university, no need to request for a user name and password to acces Internet; you connect with your CSIM credentials and you are through.
In CSIM, The number of connections to eduroam is very limited, and designed for visitors only; the rules and limitations for accessing Internet are the ones that apply for AIT in general.
Hardware deployement
The drawing below show the implementation of the access points.
CSIM facility floor plan
Unassigned
|
Unassigned
|
First floor, East
|
Unassigned
|
First floor, West
|
Second floor, East
|
Second Floor, West
|
Patch pannel assigned per location
| Location | Patch pannel | Switch port |
| First floor, East | P03-12 | 20 |
| First floor, West | P03-13 | 21 |
| Room #107 | P14-44 | 48 |
| Second floor, East | P03-11 | 44 |
| Second floor, West | P03-10 | 43 |
| Half configured, not assigned | 19 |
Signal monitoring

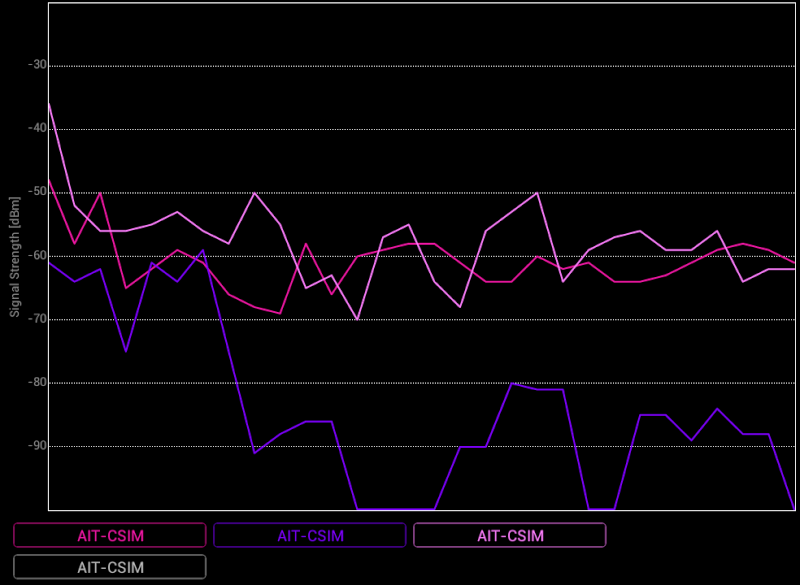

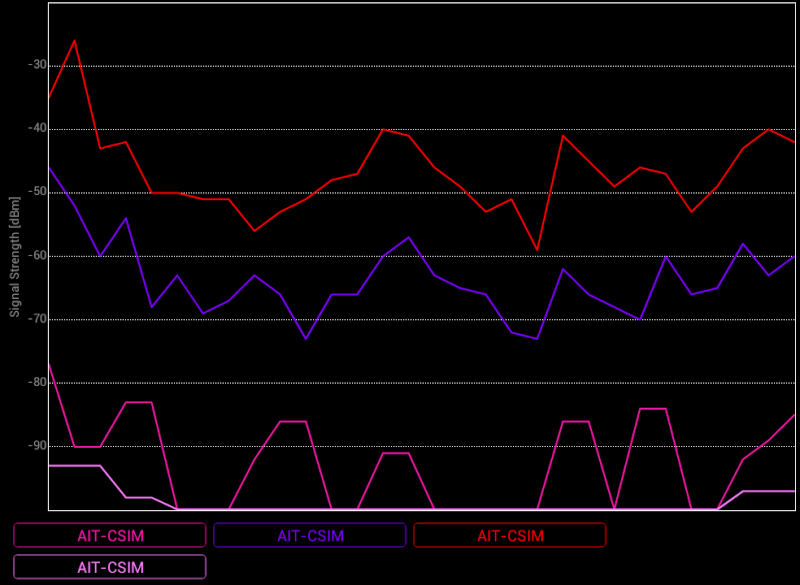

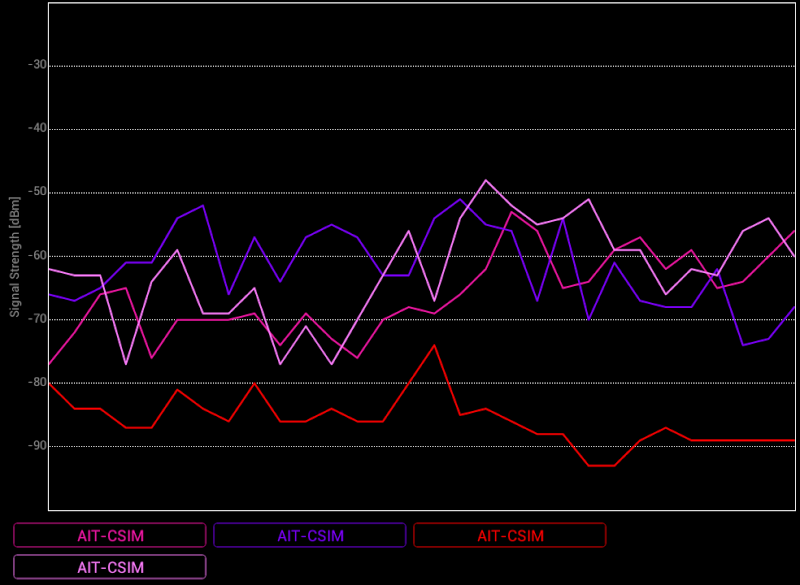

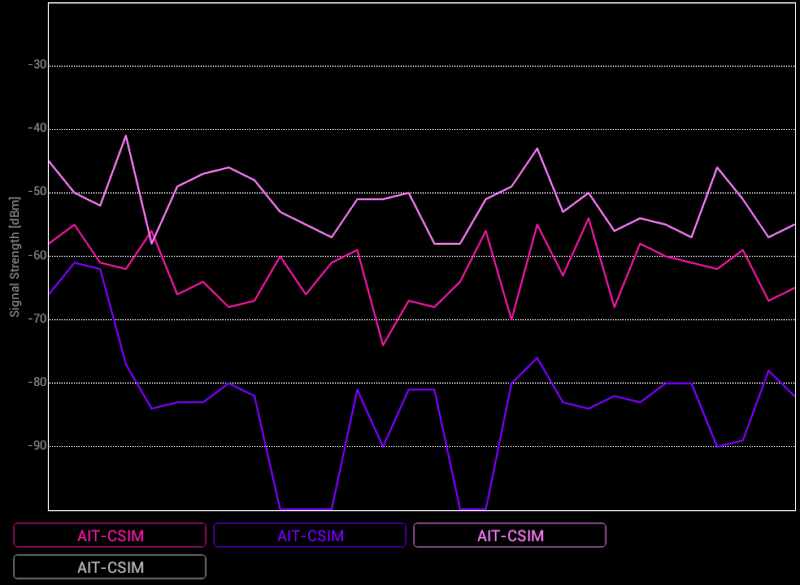

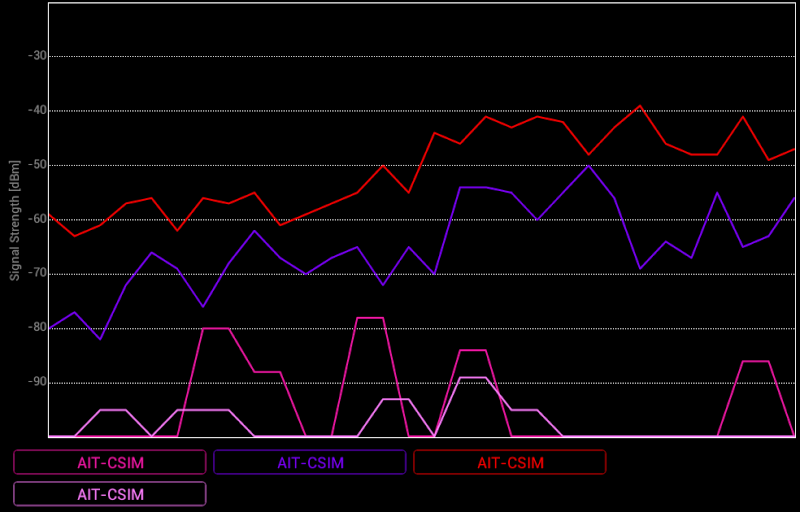

The following data show the signal received in each room of CSIM building.
July 16th, 2024
Lobby, first floor AP Location Chl Min Max Avg Rate wifi3, first floor east, 1, 72, 90, 84.0, 195 Mbit/s wifi6, second floor east, 11, 65, 87, 75.7, 540 Mbit/s wifi5, first floor west, 11, 54, 90, 66.1, 540 Mbit/s wifi5, first floor west, 149, 40, 77, 53.4, 540 Mbit/s wifi3, first floor east, 100, 40, 63, 48.6, 405 Mbit/s wifi6, second floor east, 157, 35, 59, 45.5, 540 Mbit/s wifi5, first floor west, 40, 27, 80, 45.2, 540 Mbit/s wifi7, second floor west, 1, 30, 57, 44.3, 540 Mbit/s wifi6, second floor east, 44, 34, 60, 43.8, 540 Mbit/s wifi7, second floor west, 157, 25, 25, 25.0, 540 Mbit/s wifi7, second floor west, 44, 14, 19, 15.6, 540 Mbit/s Room #101 AP Location Chl Min Max Avg Rate wifi5, first floor west, 11, 65, 100, 86.3, 540 Mbit/s wifi3, first floor east, 1, 80, 89, 85.5, 195 Mbit/s wifi5, first floor west, 149, 52, 80, 69.0, 540 Mbit/s wifi7, second floor west, 1, 60, 69, 65.5, 540 Mbit/s wifi3, first floor east, 100, 47, 90, 56.3, 405 Mbit/s wifi5, first floor west, 40, 44, 62, 54.9, 540 Mbit/s wifi6, second floor east, 11, 44, 55, 50.7, 540 Mbit/s wifi7, second floor west, 157, 32, 44, 39.3, 540 Mbit/s wifi7, second floor west, 44, 27, 34, 31.3, 540 Mbit/s wifi6, second floor east, 157, 30, 30, 30.0, 540 Mbit/s wifi6, second floor east, 44, 22, 22, 22.0, 540 Mbit/s Room #102 AP Location Chl Min Max Avg Rate wifi5, first floor west, 11, 85, 100, 99.4, 540 Mbit/s wifi7, second floor west, 1, 87, 89, 87.0, 540 Mbit/s wifi5, first floor west, 149, 60, 95, 66.2, 540 Mbit/s wifi3, first floor east, 1, 50, 70, 64.2, 195 Mbit/s wifi5, first floor west, 40, 55, 89, 64.1, 540 Mbit/s wifi7, second floor west, 157, 45, 54, 49.7, 540 Mbit/s wifi7, second floor west, 44, 27, 42, 38.9, 540 Mbit/s wifi6, second floor east, 11, 19, 42, 32.9, 540 Mbit/s wifi3, first floor east, 100, 22, 67, 29.7, 405 Mbit/s Room #103 AP Location Chl Min Max Avg Rate wifi5, first floor west, 149, 92, 94, 92.9, 540 Mbit/s wifi7, second floor west, 1, 77, 100, 87.8, 540 Mbit/s wifi5, first floor west, 40, 76, 90, 80.1, 540 Mbit/s wifi3, first floor east, 1, 50, 97, 72.1, 195 Mbit/s wifi7, second floor west, 157, 69, 70, 69.5, 540 Mbit/s wifi7, second floor west, 44, 57, 59, 57.9, 540 Mbit/s wifi5, first floor west, 11, 9, 100, 51.8, 540 Mbit/s wifi3, first floor east, 100, 27, 67, 45.8, 405 Mbit/s wifi6, second floor east, 11, 27, 57, 41.1, 540 Mbit/s wifi6, second floor east, 157, 19, 19, 19.0, 540 Mbit/s Room #104 AP Location Chl Min Max Avg Rate wifi5, first floor west, 11, 100, 100, 100.0, 540 Mbit/s wifi5, first floor west, 149, 90, 100, 97.2, 540 Mbit/s wifi7, second floor west, 1, 87, 100, 96.4, 540 Mbit/s wifi5, first floor west, 40, 77, 80, 78.3, 540 Mbit/s wifi3, first floor east, 100, 34, 75, 63.7, 405 Mbit/s wifi7, second floor west, 157, 59, 64, 62.6, 540 Mbit/s wifi3, first floor east, 1, 42, 70, 62.3, 195 Mbit/s wifi7, second floor west, 44, 62, 62, 62.0, 540 Mbit/s wifi6, second floor east, 11, 45, 45, 45.0, 540 Mbit/s wifi6, second floor east, 157, 19, 19, 19.0, 540 Mbit/s Room #105 AP Location Chl Min Max Avg Rate wifi5, first floor west, 149, 67, 89, 82.9, 540 Mbit/s wifi7, second floor west, 1, 77, 79, 78.4, 540 Mbit/s wifi5, first floor west, 11, 2, 100, 73.0, 540 Mbit/s wifi5, first floor west, 40, 52, 82, 62.6, 540 Mbit/s wifi7, second floor west, 157, 52, 54, 53.4, 540 Mbit/s wifi3, first floor east, 1, 47, 47, 47.0, 195 Mbit/s wifi7, second floor west, 44, 44, 52, 46.2, 540 Mbit/s wifi3, first floor east, 100, 19, 37, 32.0, 405 Mbit/s wifi6, second floor east, 11, 24, 25, 24.7, 540 Mbit/s Classroom #106 AP Location Chl Min Max Avg Rate wifi5, first floor west, 11, 87, 100, 98.7, 540 Mbit/s wifi7, second floor west, 1, 67, 89, 83.7, 540 Mbit/s wifi5, first floor west, 149, 64, 85, 70.6, 540 Mbit/s wifi5, first floor west, 40, 55, 80, 68.5, 540 Mbit/s wifi3, first floor east, 1, 27, 72, 46.5, 195 Mbit/s wifi7, second floor west, 157, 37, 54, 46.3, 540 Mbit/s wifi7, second floor west, 44, 34, 44, 37.5, 540 Mbit/s wifi3, first floor east, 100, 14, 69, 28.0, 405 Mbit/s wifi6, second floor east, 11, 10, 40, 18.5, 540 Mbit/s Room #107 AP Location Chl Min Max Avg Rate wifi5, first floor west, 11, 75, 95, 83.2, 540 Mbit/s wifi7, second floor west, 1, 52, 87, 73.7, 540 Mbit/s wifi5, first floor west, 149, 59, 62, 60.1, 540 Mbit/s wifi5, first floor west, 40, 44, 60, 54.5, 540 Mbit/s wifi3, first floor east, 1, 32, 55, 50.6, 195 Mbit/s wifi7, second floor west, 157, 35, 37, 35.6, 540 Mbit/s wifi6, second floor east, 11, 30, 35, 32.3, 540 Mbit/s wifi7, second floor west, 44, 12, 35, 21.7, 540 Mbit/s wifi3, first floor east, 100, 15, 24, 18.7, 405 Mbit/s wifi6, second floor east, 157, 12, 12, 12.0, 540 Mbit/s Room #112 AP Location Chl Min Max Avg Rate wifi3, first floor east, 1, 82, 87, 84.1, 195 Mbit/s wifi6, second floor east, 11, 60, 74, 65.9, 540 Mbit/s wifi5, first floor west, 11, 62, 65, 63.7, 540 Mbit/s wifi3, first floor east, 100, 44, 60, 50.8, 405 Mbit/s wifi6, second floor east, 44, 39, 49, 43.2, 540 Mbit/s wifi6, second floor east, 157, 37, 49, 42.1, 540 Mbit/s wifi5, first floor west, 149, 35, 40, 37.9, 540 Mbit/s wifi7, second floor west, 1, 32, 40, 36.6, 540 Mbit/s wifi5, first floor west, 40, 17, 41, 33.0, 540 Mbit/s wifi7, second floor west, 44, 9, 9, 9.0, 540 Mbit/s Office #111 AP Location Chl Min Max Avg Rate wifi3, first floor east, 1, 85, 100, 93.9, 195 Mbit/s wifi6, second floor east, 11, 79, 100, 85.2, 540 Mbit/s wifi3, first floor east, 100, 50, 90, 67.1, 405 Mbit/s wifi5, first floor west, 11, 40, 77, 54.7, 540 Mbit/s wifi7, second floor west, 1, 34, 57, 52.7, 540 Mbit/s wifi6, second floor east, 44, 42, 59, 49.9, 540 Mbit/s wifi6, second floor east, 157, 39, 59, 48.2, 540 Mbit/s wifi5, first floor west, 149, 17, 74, 40.0, 540 Mbit/s wifi5, first floor west, 40, 19, 62, 37.3, 540 Mbit/s wifi7, second floor west, 157, 20, 20, 20.0, 540 Mbit/s meeting room #113 AP Location Chl Min Max Avg Rate wifi3, first floor east, 1, 72, 87, 78.3, 195 Mbit/s wifi6, second floor east, 11, 57, 85, 62.8, 540 Mbit/s wifi5, first floor west, 11, 44, 67, 52.6, 540 Mbit/s wifi6, second floor east, 157, 35, 67, 40.6, 540 Mbit/s wifi3, first floor east, 100, 37, 44, 40.1, 405 Mbit/s wifi6, second floor east, 44, 30, 50, 38.4, 540 Mbit/s wifi5, first floor west, 149, 35, 44, 37.3, 540 Mbit/s wifi5, first floor west, 40, 22, 34, 25.8, 540 Mbit/s wifi7, second floor west, 157, 20, 20, 20.0, 540 Mbit/s wifi7, second floor west, 1, 10, 24, 19.8, 540 Mbit/s Room #114 AP Location Chl Min Max Avg Rate wifi3, first floor east, 1, 85, 89, 87.4, 195 Mbit/s wifi6, second floor east, 11, 65, 67, 65.8, 540 Mbit/s wifi3, first floor east, 100, 50, 65, 59.1, 405 Mbit/s wifi5, first floor west, 11, 40, 49, 45.4, 540 Mbit/s wifi5, first floor west, 149, 44, 45, 44.6, 540 Mbit/s wifi6, second floor east, 44, 34, 43, 40.5, 540 Mbit/s wifi5, first floor west, 40, 27, 39, 34.3, 540 Mbit/s wifi6, second floor east, 157, 34, 34, 34.0, 540 Mbit/s wifi7, second floor west, 1, 30, 30, 30.0, 540 Mbit/s Room #115 AP Location Chl Min Max Avg Rate wifi3, first floor east, 1, 77, 100, 81.2, 195 Mbit/s wifi3, first floor east, 100, 67, 80, 69.4, 405 Mbit/s wifi6, second floor east, 11, 65, 74, 66.7, 540 Mbit/s wifi5, first floor west, 11, 50, 100, 59.2, 540 Mbit/s wifi7, second floor west, 1, 54, 54, 54.0, 540 Mbit/s wifi5, first floor west, 149, 42, 72, 47.5, 540 Mbit/s wifi6, second floor east, 44, 29, 57, 43.3, 540 Mbit/s wifi5, first floor west, 40, 35, 64, 40.3, 540 Mbit/s wifi6, second floor east, 157, 34, 39, 34.9, 540 Mbit/s wifi7, second floor west, 157, 15, 15, 15.0, 540 Mbit/s Room #116 AP Location Chl Min Max Avg Rate wifi3, first floor east, 1, 100, 100, 100.0, 195 Mbit/s wifi6, second floor east, 11, 89, 100, 96.1, 540 Mbit/s wifi3, first floor east, 100, 69, 79, 73.8, 405 Mbit/s wifi5, first floor west, 11, 64, 92, 71.0, 540 Mbit/s wifi5, first floor west, 149, 55, 87, 59.2, 540 Mbit/s wifi6, second floor east, 157, 54, 55, 54.9, 540 Mbit/s wifi6, second floor east, 44, 47, 63, 54.3, 540 Mbit/s wifi7, second floor west, 1, 45, 47, 45.3, 540 Mbit/s wifi5, first floor west, 40, 27, 69, 35.6, 540 Mbit/s wifi7, second floor west, 157, 20, 30, 25.6, 540 Mbit/s wifi7, second floor west, 44, 20, 20, 20.0, 540 Mbit/s Room #201 AP Location Chl Min Max Avg Rate wifi6, second floor east, 157, 100, 100, 100.0, 540 Mbit/s wifi6, second floor east, 11, 100, 100, 100.0, 540 Mbit/s wifi5, first floor west, 149, 87, 87, 87.0, 540 Mbit/s wifi6, second floor east, 44, 60, 82, 68.2, 540 Mbit/s wifi7, second floor west, 1, 62, 64, 63.7, 540 Mbit/s wifi3, first floor east, 1, 55, 57, 55.3, 195 Mbit/s wifi5, first floor west, 11, 37, 42, 41.1, 540 Mbit/s wifi7, second floor west, 44, 37, 37, 37.0, 540 Mbit/s wifi7, second floor west, 157, 29, 29, 29.0, 540 Mbit/s wifi3, first floor east, 100, 19, 19, 19.0, 405 Mbit/s wifi5, first floor west, 40, 12, 12, 12.0, 540 Mbit/s Room #202 AP Location Chl Min Max Avg Rate wifi6, second floor east, 11, 100, 100, 100.0, 540 Mbit/s wifi6, second floor east, 157, 87, 100, 89.9, 540 Mbit/s wifi6, second floor east, 44, 78, 100, 84.2, 540 Mbit/s wifi3, first floor east, 1, 65, 84, 78.6, 195 Mbit/s wifi7, second floor west, 1, 30, 55, 44.0, 540 Mbit/s wifi5, first floor west, 11, 25, 45, 31.4, 540 Mbit/s wifi3, first floor east, 100, 25, 39, 29.0, 405 Mbit/s wifi7, second floor west, 157, 29, 29, 29.0, 540 Mbit/s wifi7, second floor west, 44, 27, 27, 27.0, 540 Mbit/s Room #203 AP Location Chl Min Max Avg Rate wifi6, second floor east, 157, 77, 100, 93.9, 540 Mbit/s wifi6, second floor east, 11, 34, 100, 86.4, 540 Mbit/s wifi6, second floor east, 44, 66, 100, 73.4, 540 Mbit/s wifi3, first floor east, 1, 47, 85, 62.1, 195 Mbit/s wifi7, second floor west, 1, 32, 42, 34.0, 540 Mbit/s wifi7, second floor west, 157, 29, 32, 30.5, 540 Mbit/s wifi7, second floor west, 44, 27, 27, 27.0, 540 Mbit/s wifi5, first floor west, 11, 24, 29, 26.1, 540 Mbit/s wifi3, first floor east, 100, 17, 42, 23.1, 405 Mbit/s Room #204 AP Location Chl Min Max Avg Rate wifi3, first floor east, 1, 50, 92, 77.5, 195 Mbit/s wifi6, second floor east, 157, 69, 90, 75.2, 540 Mbit/s wifi6, second floor east, 11, 20, 100, 75.1, 540 Mbit/s wifi6, second floor east, 44, 60, 97, 70.0, 540 Mbit/s wifi7, second floor west, 1, 35, 47, 43.9, 540 Mbit/s wifi5, first floor west, 11, 25, 49, 39.6, 540 Mbit/s wifi3, first floor east, 100, 17, 52, 33.3, 405 Mbit/s wifi7, second floor west, 157, 15, 19, 15.9, 540 Mbit/s wifi5, first floor west, 40, 5, 5, 5.0, 540 Mbit/s Room #206 AP Location Chl Min Max Avg Rate wifi6, second floor east, 11, 90, 100, 96.9, 540 Mbit/s wifi6, second floor east, 157, 85, 100, 95.3, 540 Mbit/s wifi3, first floor east, 1, 79, 100, 93.4, 195 Mbit/s wifi6, second floor east, 44, 70, 89, 77.7, 540 Mbit/s wifi7, second floor west, 1, 40, 57, 45.4, 540 Mbit/s wifi3, first floor east, 100, 35, 60, 39.9, 405 Mbit/s wifi5, first floor west, 11, 30, 44, 30.1, 540 Mbit/s wifi7, second floor west, 157, 19, 19, 19.0, 540 Mbit/s Room #207 AP Location Chl Min Max Avg Rate wifi6, second floor east, 11, 92, 99, 95.8, 540 Mbit/s wifi3, first floor east, 1, 60, 75, 68.3, 195 Mbit/s wifi6, second floor east, 157, 65, 72, 67.9, 540 Mbit/s wifi6, second floor east, 44, 55, 70, 62.3, 540 Mbit/s wifi7, second floor west, 1, 47, 65, 54.2, 540 Mbit/s wifi5, first floor west, 11, 34, 44, 38.2, 540 Mbit/s wifi7, second floor west, 157, 27, 27, 27.0, 540 Mbit/s wifi3, first floor east, 100, 25, 29, 25.8, 405 Mbit/s wifi7, second floor west, 44, 24, 24, 24.0, 540 Mbit/s Classroom #209 AP Location Chl Min Max Avg Rate wifi6, second floor east, 11, 52, 82, 68.4, 540 Mbit/s wifi7, second floor west, 157, 49, 64, 58.4, 540 Mbit/s wifi7, second floor west, 1, 14, 92, 51.1, 540 Mbit/s wifi7, second floor west, 44, 44, 60, 48.2, 540 Mbit/s wifi3, first floor east, 1, 40, 64, 48.1, 195 Mbit/s wifi5, first floor west, 11, 32, 60, 48.1, 540 Mbit/s wifi6, second floor east, 44, 35, 54, 47.5, 540 Mbit/s wifi6, second floor east, 157, 32, 47, 42.7, 540 Mbit/s wifi5, first floor west, 149, 24, 32, 24.6, 540 Mbit/s wifi3, first floor east, 100, 15, 22, 17.7, 405 Mbit/s wifi5, first floor west, 40, 10, 19, 13.3, 540 Mbit/s Laboratory #210 AP Location Chl Min Max Avg Rate wifi7, second floor west, 1, 99, 100, 99.8, 540 Mbit/s wifi7, second floor west, 44, 74, 100, 94.3, 540 Mbit/s wifi7, second floor west, 157, 73, 100, 88.7, 540 Mbit/s wifi5, first floor west, 11, 57, 90, 77.5, 540 Mbit/s wifi5, first floor west, 149, 35, 64, 50.0, 540 Mbit/s wifi5, first floor west, 40, 24, 55, 42.2, 540 Mbit/s wifi3, first floor east, 1, 29, 39, 36.7, 195 Mbit/s wifi6, second floor east, 11, 12, 44, 34.6, 540 Mbit/s wifi6, second floor east, 157, 17, 40, 23.5, 540 Mbit/s wifi6, second floor east, 44, 10, 40, 17.6, 540 Mbit/s wifi3, first floor east, 100, 10, 17, 10.8, 405 Mbit/s Laboratory #211 AP Location Chl Min Max Avg Rate wifi7, second floor west, 1, 89, 100, 97.9, 540 Mbit/s wifi7, second floor west, 157, 62, 85, 73.3, 540 Mbit/s wifi5, first floor west, 11, 59, 92, 73.1, 540 Mbit/s wifi7, second floor west, 44, 60, 85, 70.2, 540 Mbit/s wifi6, second floor east, 11, 20, 60, 38.9, 540 Mbit/s wifi6, second floor east, 157, 29, 44, 32.8, 540 Mbit/s wifi5, first floor west, 40, 24, 39, 30.8, 540 Mbit/s wifi5, first floor west, 149, 22, 37, 29.0, 540 Mbit/s wifi3, first floor east, 1, 25, 25, 25.0, 195 Mbit/s wifi6, second floor east, 44, 15, 34, 19.9, 540 Mbit/s Room #213 AP Location Chl Min Max Avg Rate wifi7, second floor west, 1, 82, 94, 89.8, 540 Mbit/s wifi5, first floor west, 11, 49, 57, 54.2, 540 Mbit/s wifi7, second floor west, 157, 49, 57, 53.2, 540 Mbit/s wifi7, second floor west, 44, 42, 45, 44.0, 540 Mbit/s wifi6, second floor east, 11, 40, 42, 41.3, 540 Mbit/s wifi6, second floor east, 157, 40, 40, 40.0, 540 Mbit/s wifi3, first floor east, 1, 29, 29, 29.0, 195 Mbit/s wifi6, second floor east, 44, 27, 27, 27.0, 540 Mbit/s wifi5, first floor west, 40, 25, 25, 25.0, 540 Mbit/s

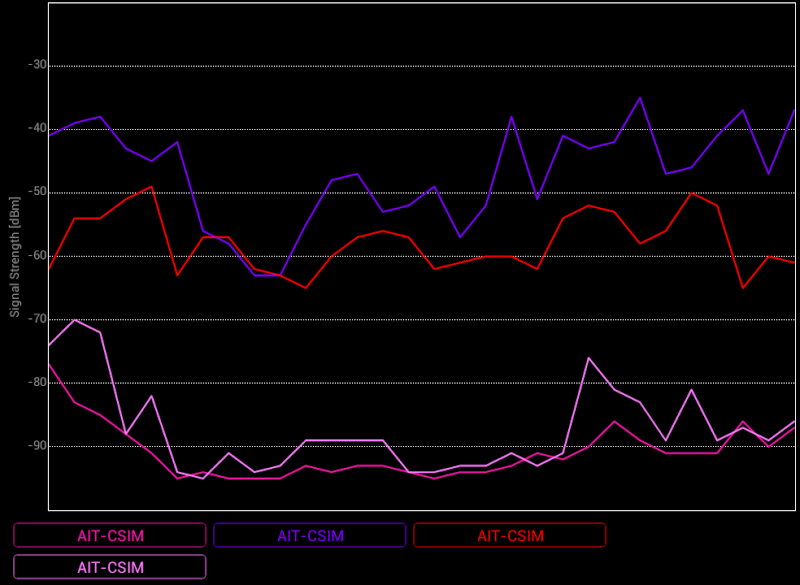

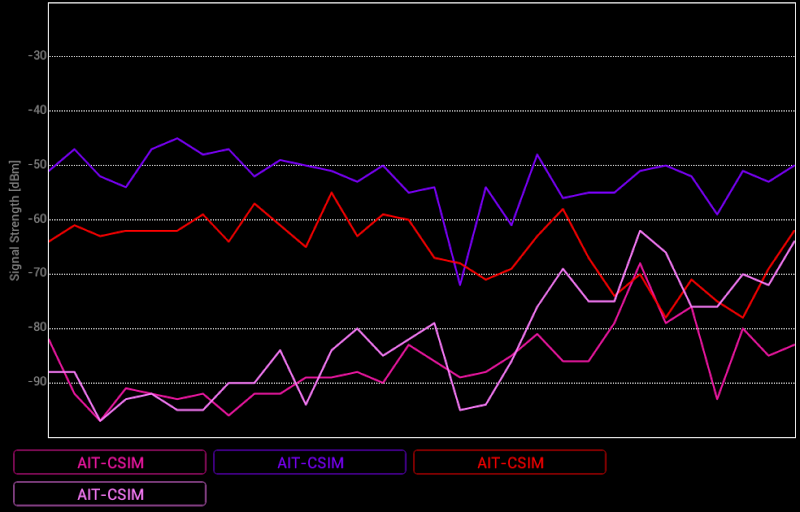

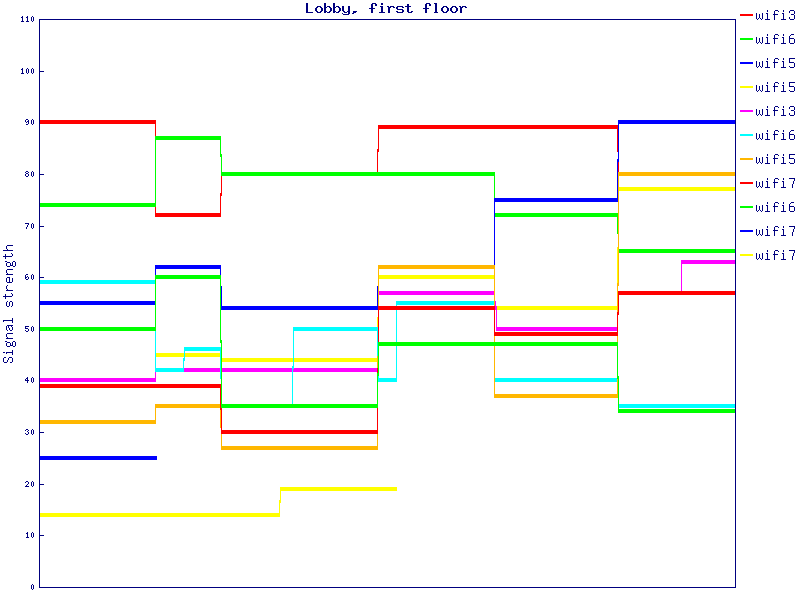

 Lobby, first floor |

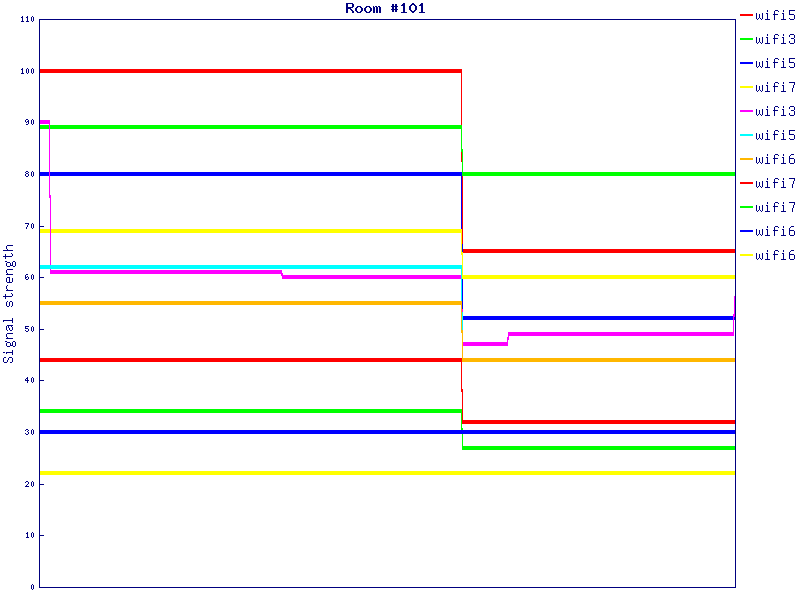

 Room #101 |

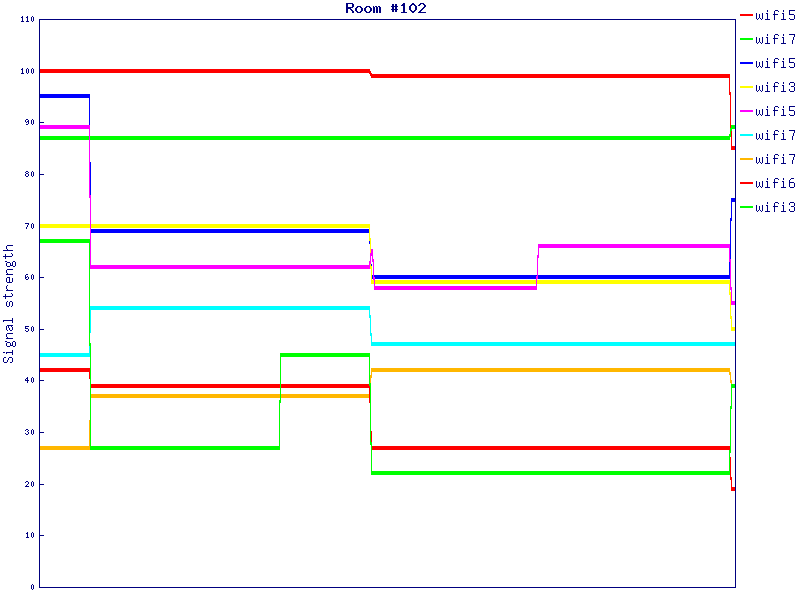

 Room #102 |

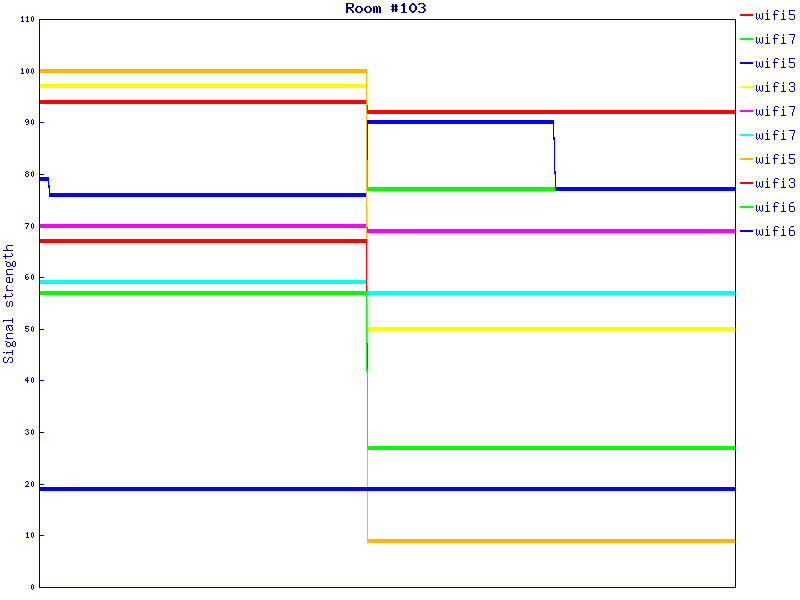

 Room #103 |

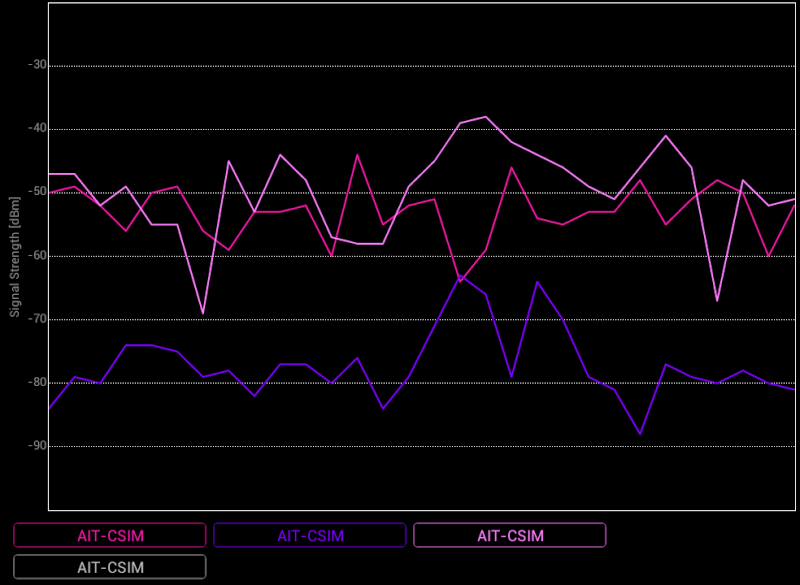

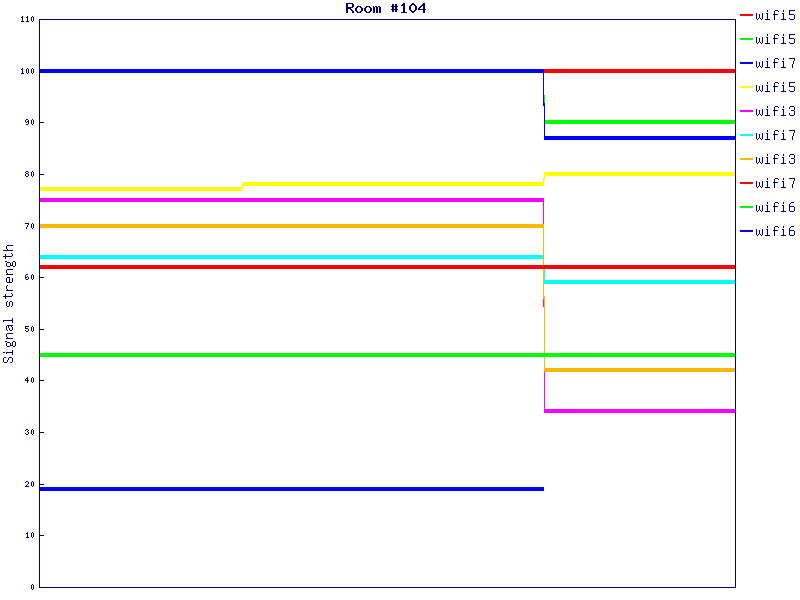

 Room #104 |

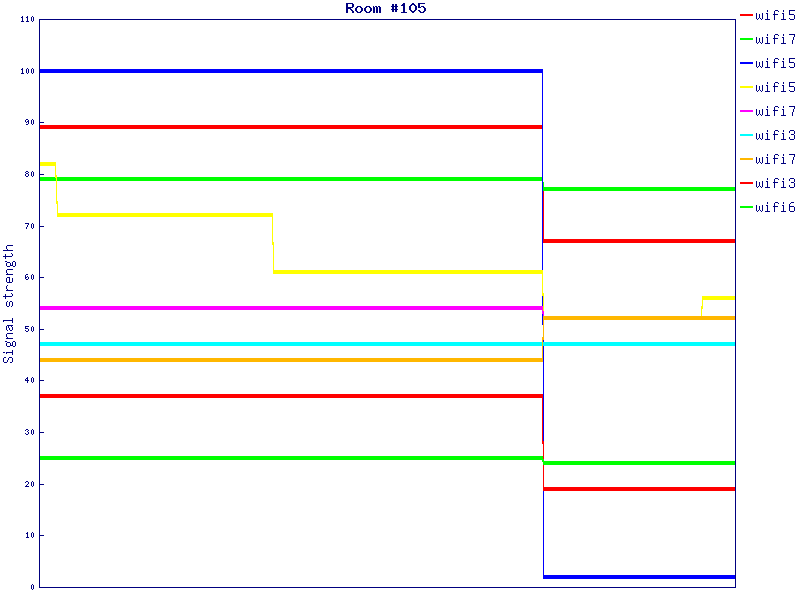

 Room #105 |

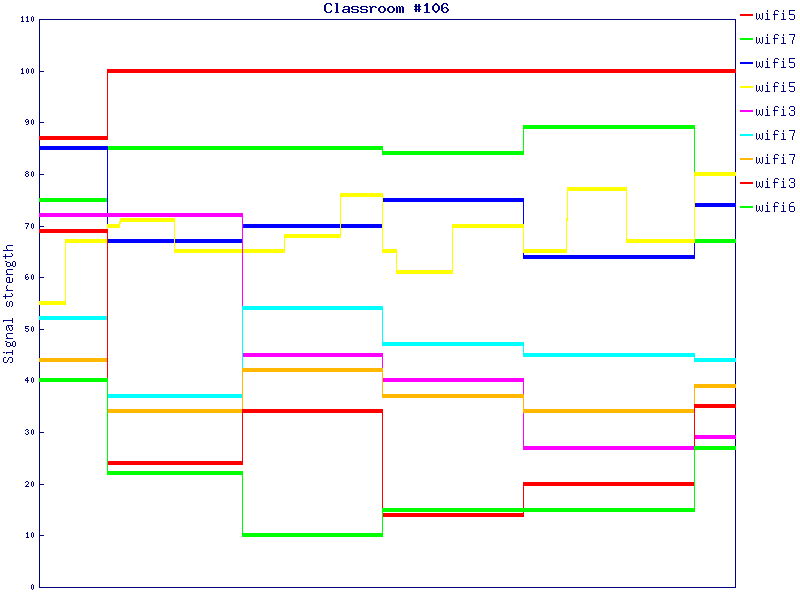

 Classroom #106 |

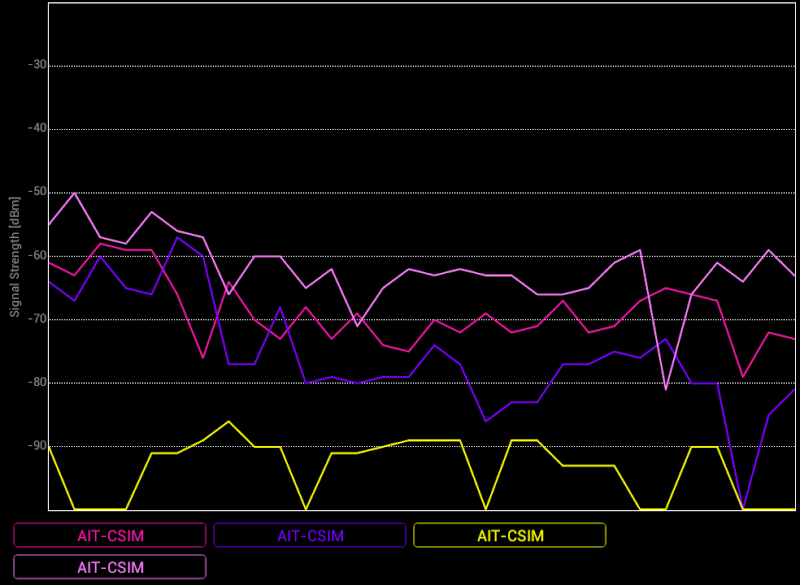

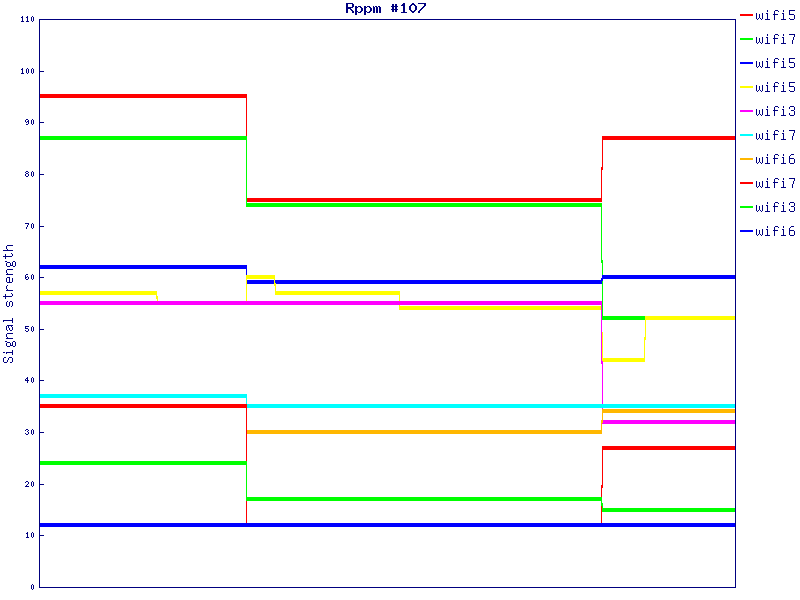

 Room #107 |

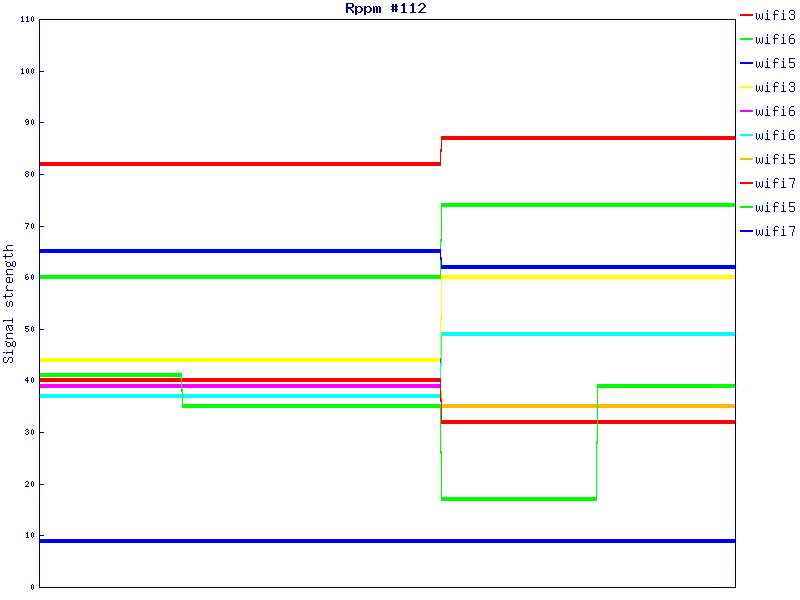

 Room #112 |

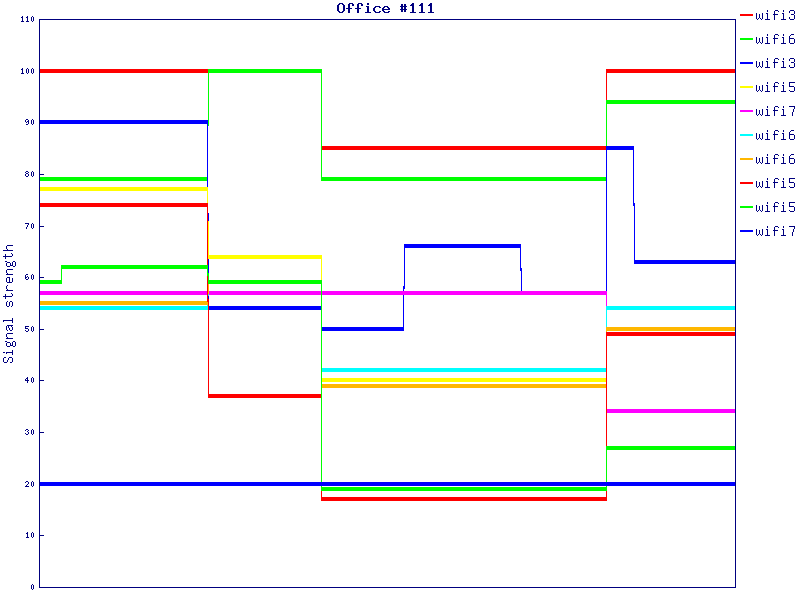

 Office #111 |

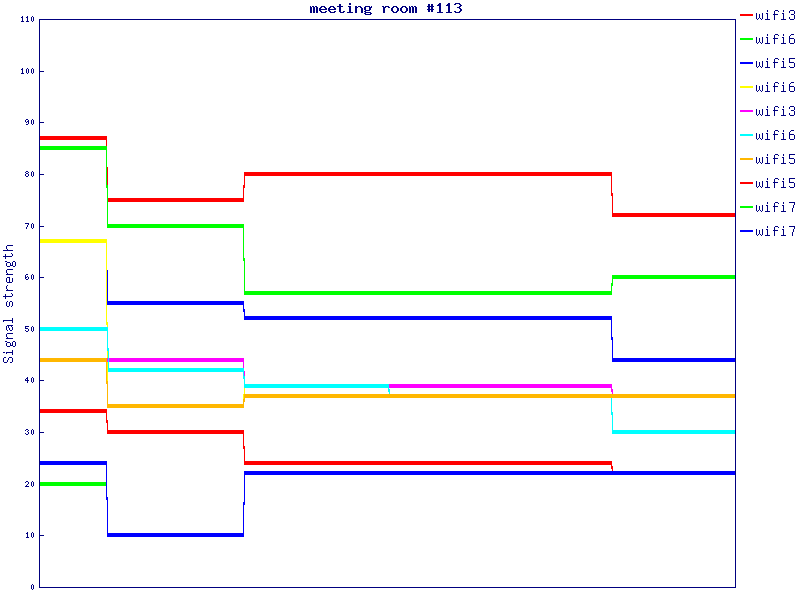

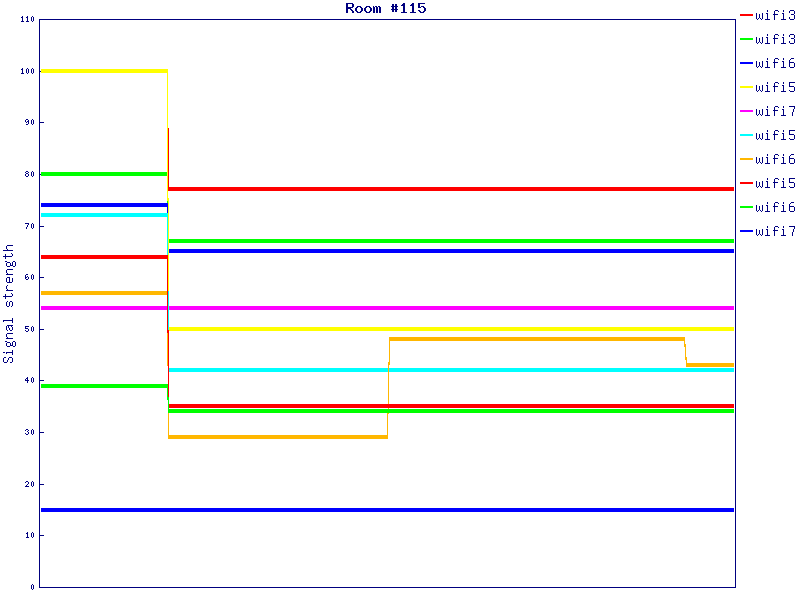

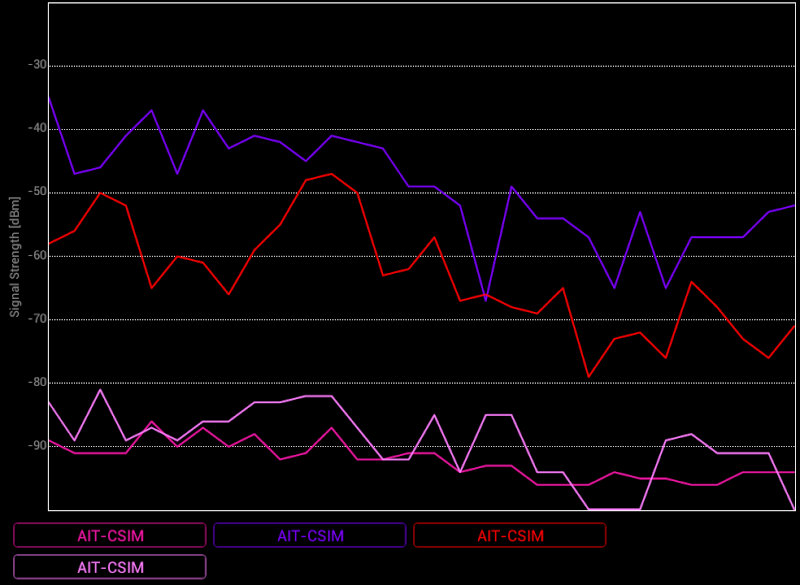

 meeting room #113 |

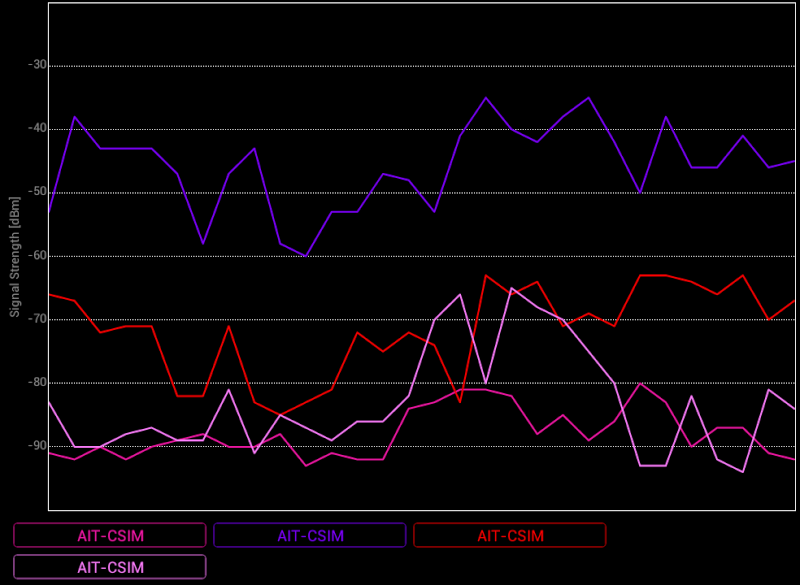

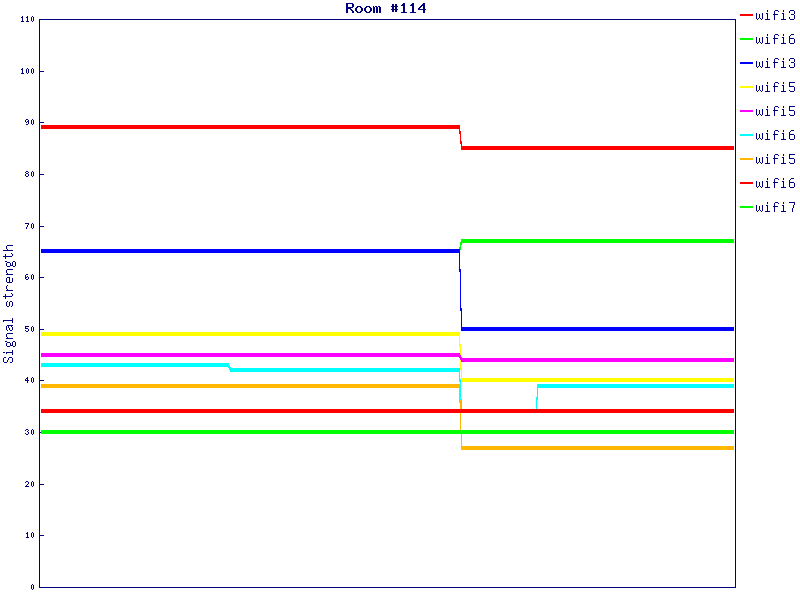

 Room #114 |
 Room #115 |

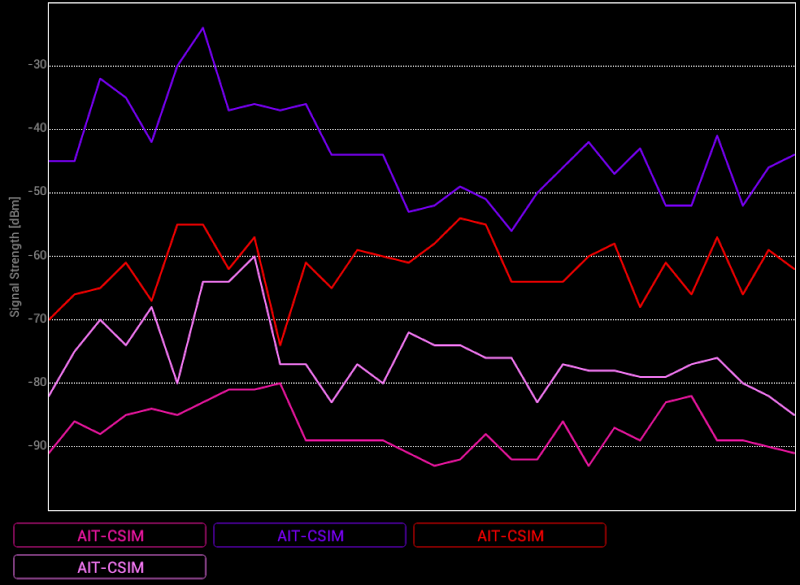

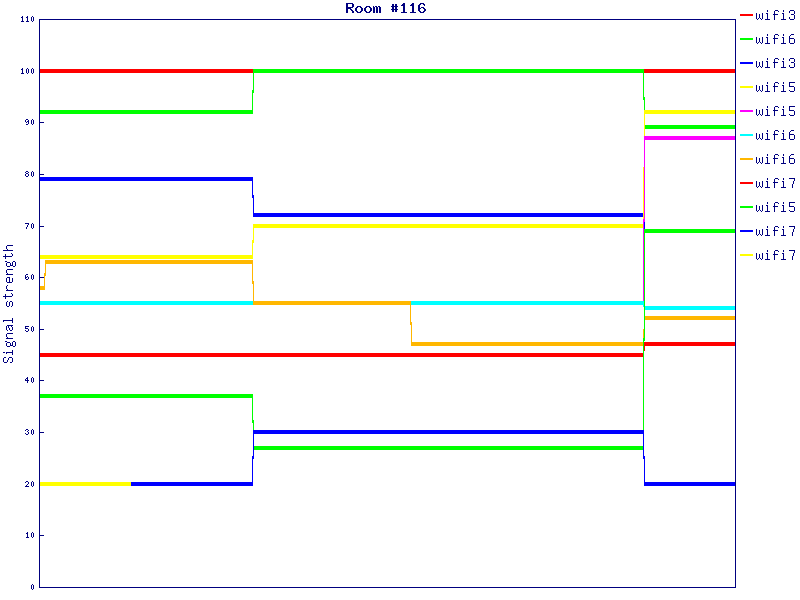

 Room #116 |

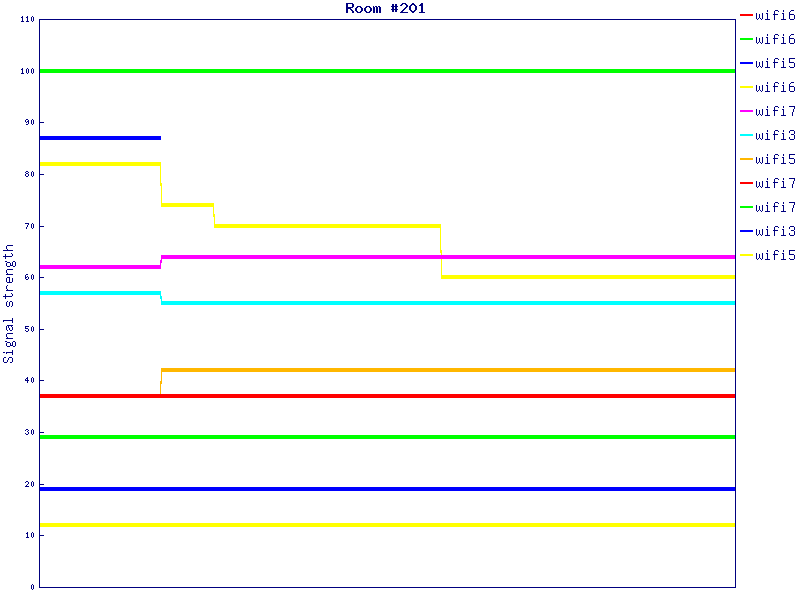

 Room #201 |

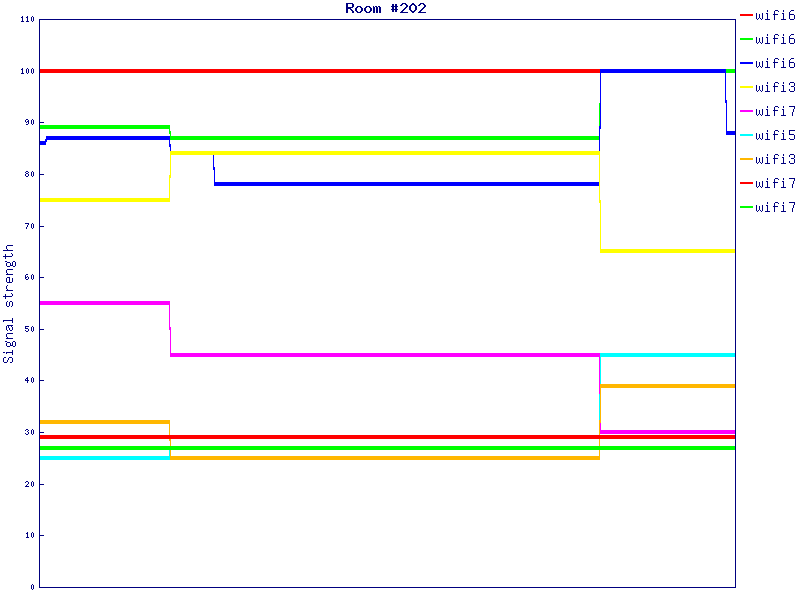

 Room #202 |

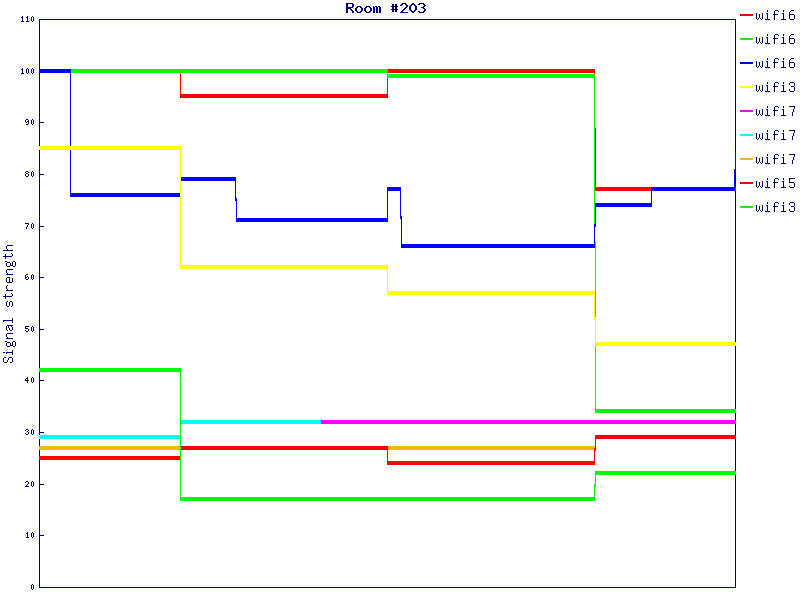

 Room #203 |

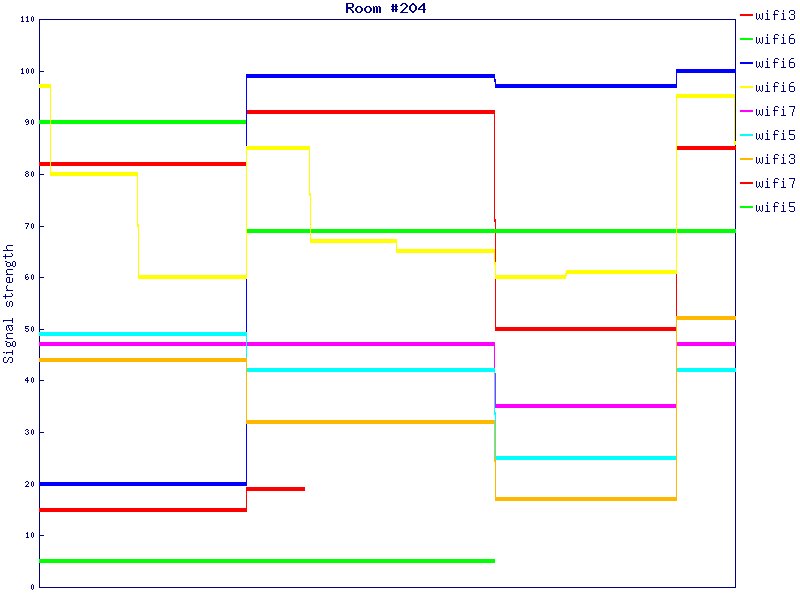

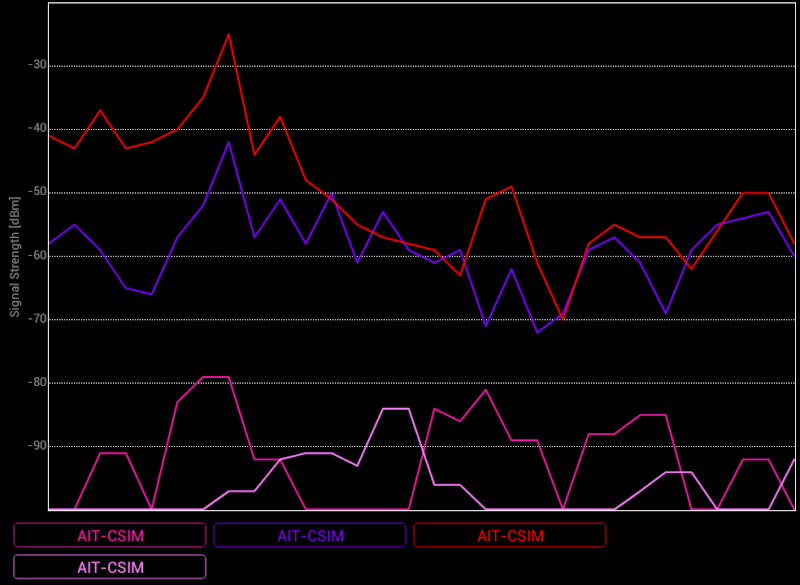

 Room #204 |

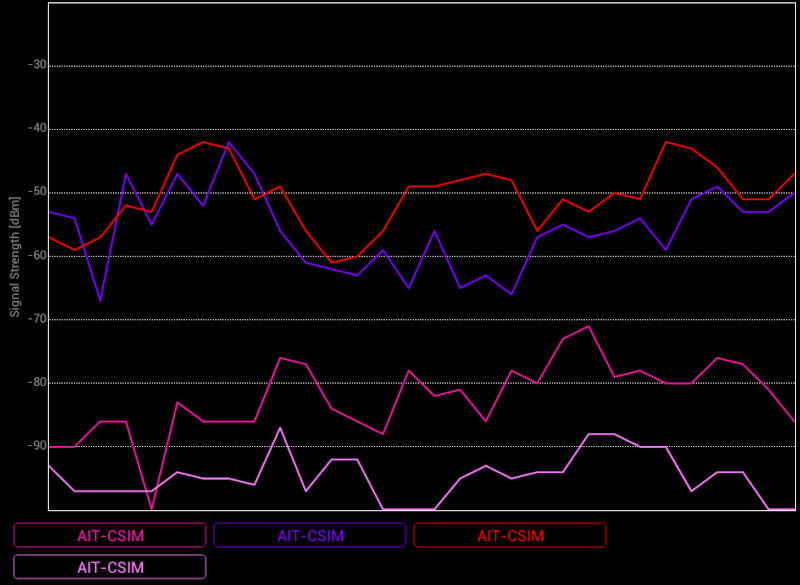

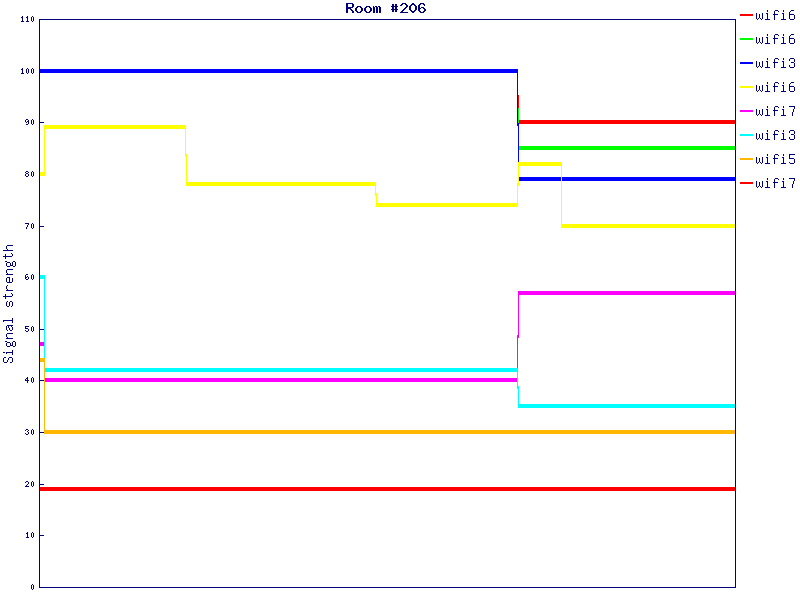

 Room #206 |

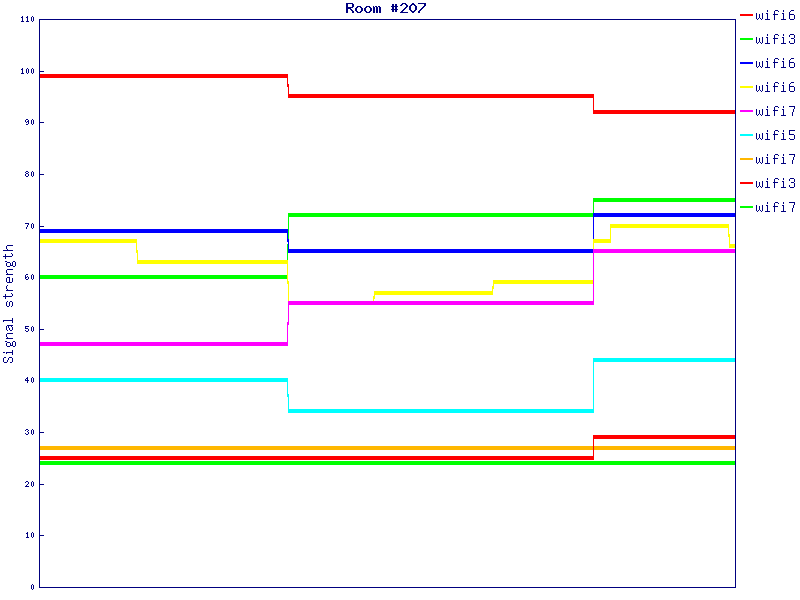

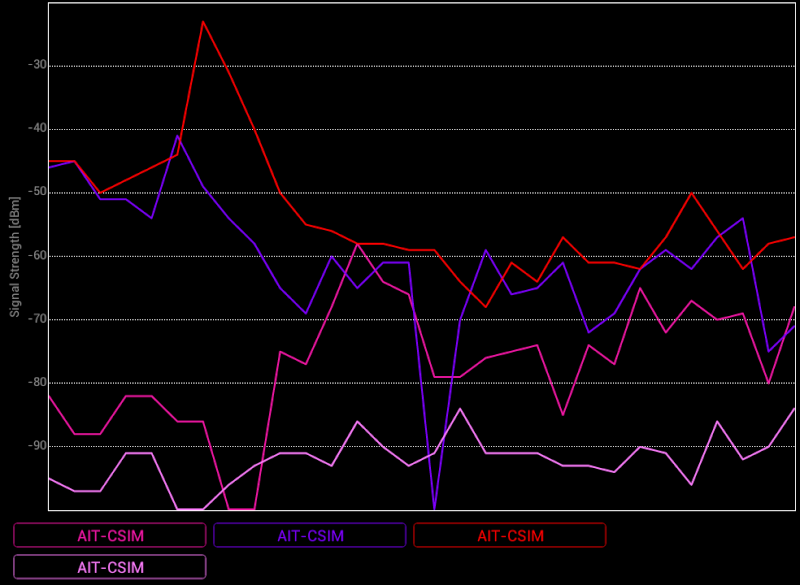

 Room #207 |

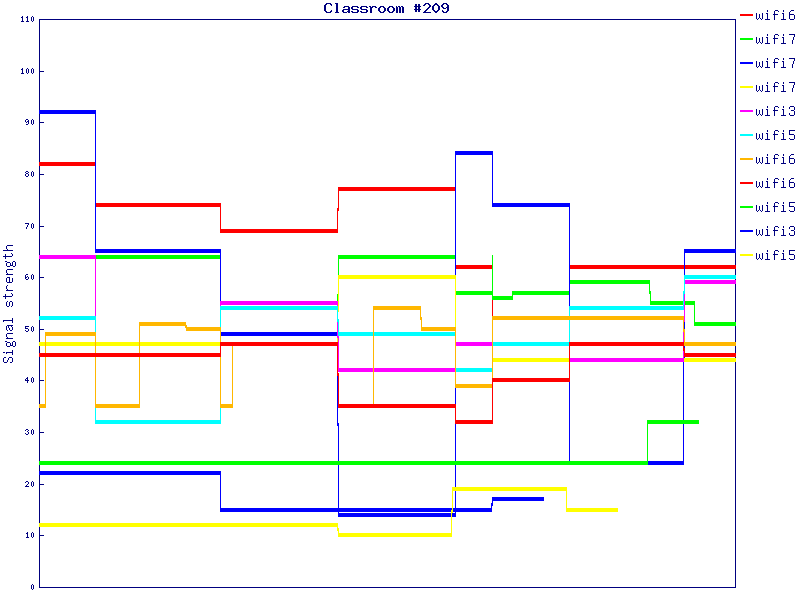

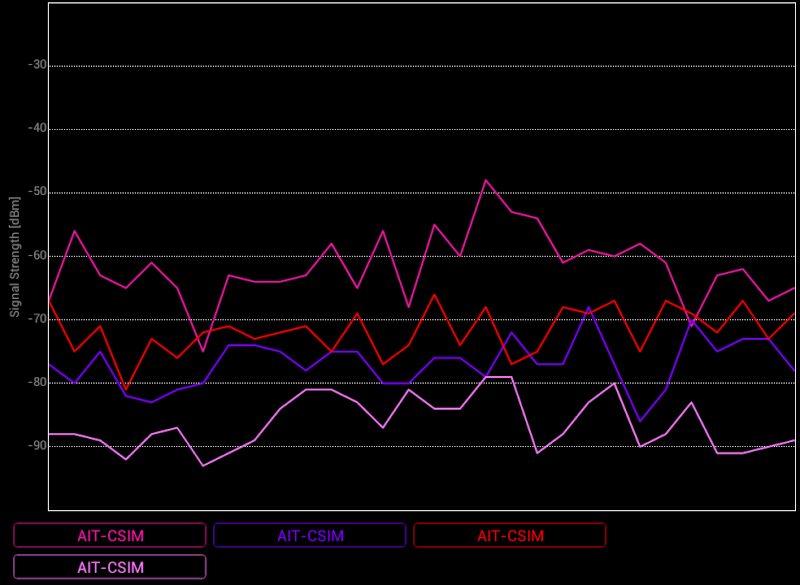

 Classroom #209 |

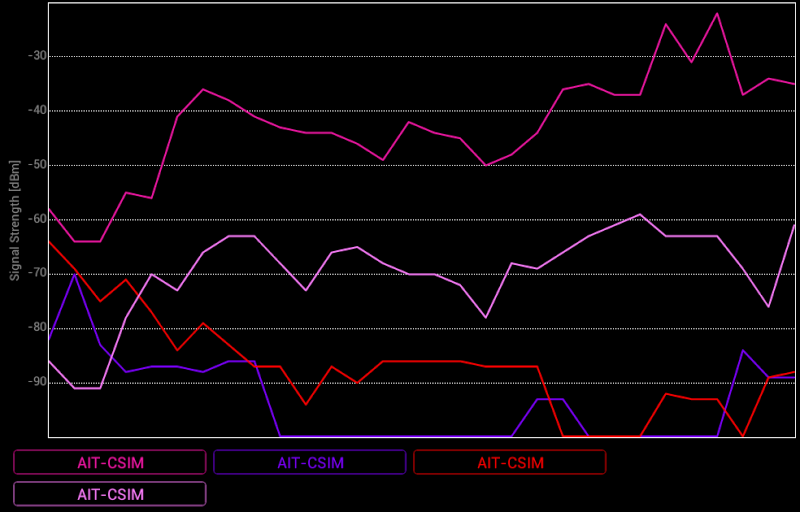

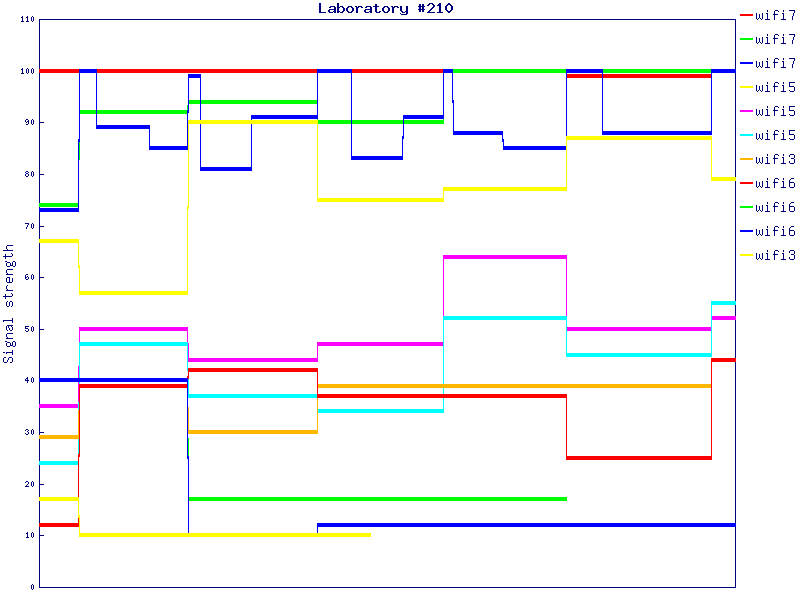

 Laboratory #210 |

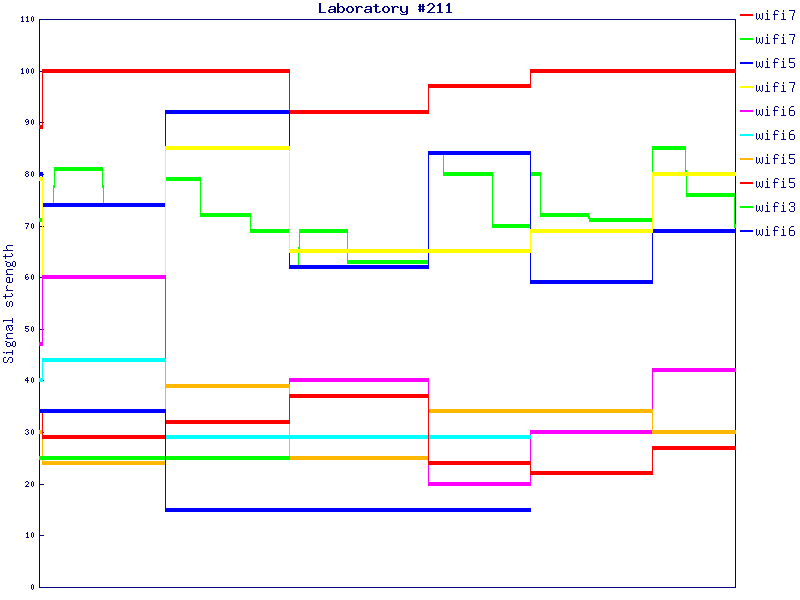

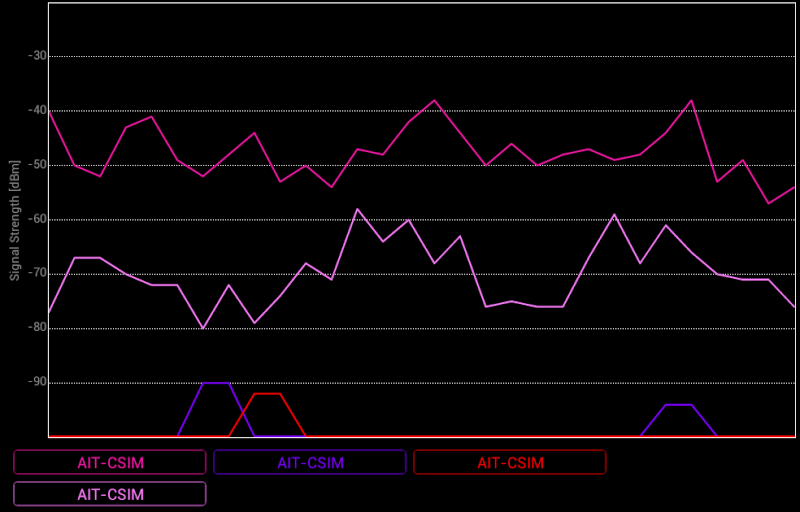

 Laboratory #211 |

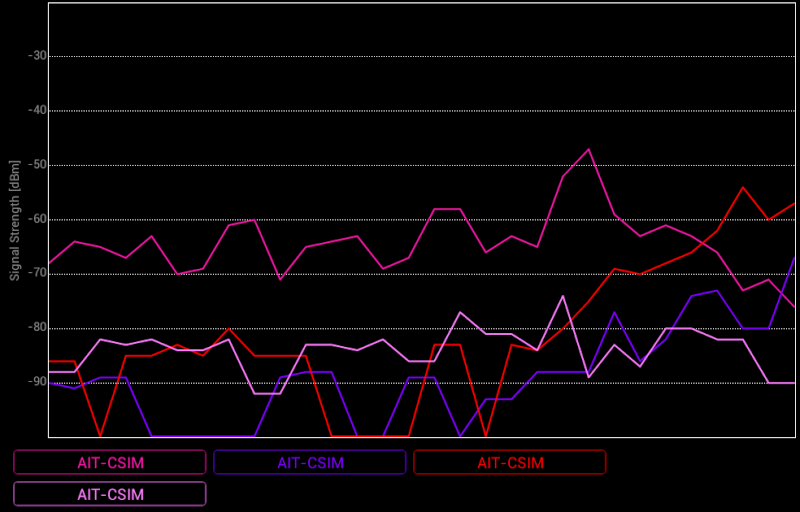

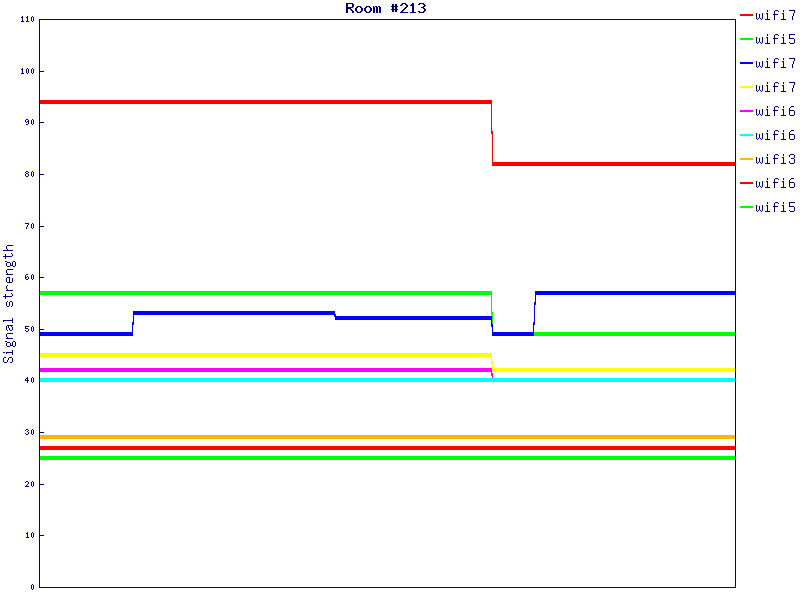

 Room #213 |
The data were collected on July 16th, 2024, using nmcli on Ubuntu and GD Graphics Library for the graphs. The Perl script is available.
